KTB-P8156 15.6-inch High Definition Industrial Panel PC, Fanless Wide Temperature Industrial Touch All-in-One PC
KTB-P8156 is a 15.6-inch industrial touch panel PC configurable with Intel Celeron J1900/J6412 and 4th~10th Gen Intel Core i3/i5/i7 processors, supporting DDR3/DDR4 RAM up to 32GB. Equipped with a 15.6-inch XGA HD screen at 1920×1280 resolution, it offers optional 10-point capacitive touch or 5-wire resistive touch. Built-in dual Intel I210 Gigabit Ethernet ports, 6 COM ports (COM1-2 compatible with RS422/485), 4×USB3.0 and HDMI interfaces. A miniPCIe slot with SIM card holder enables 4G/5G expansion, alongside dedicated mSATA and 2.5-inch hard drive bays. Featuring DC 9~36V wide voltage input, IP65-rated front panel and fanless aluminum chassis, the unit works steadily from -20℃ to 60℃, widely deployed in industrial control, intelligent production lines and equipment monitoring.
Technical Parameters
| Model | KTB-P8156 |
| Processor | Intel Celeron J1900 / J6412 |
| ® Intel Core™ i3-4010U / i3-7100U | |
| i5-4260U / i5-7200U / i5-8260U / i5-10210U | |
| i7-4650U / i7-7500U / i7-10610U | |
| BIOS | AMI UEFI 64M bit |
| Memory | Architecture： |
| Celeron® J1900 / Core™ 4th：2*DDR3 SO-DIMM | |
| Celeron J6412, Core™ 7/8/10th：1*DDR4 SO-DIMM | |
| Capacity： | |
| DDR3：Up to 8GB | |
| DDR4：Up to 32GB | |
| I/O interface | 1*HDMI; 2*LAN (2*RJ45 Intel I210, 10/100/1000Mbps) |
| 4*USB3.0; 6*COM (6*232, among which COM1-2 supports RS422/485) | |
| 1*Line-out; 1*Mic-in | |
| Watchdog | 255-level programmable settings |
| GPIO | Optional |
| Expansion slot | 1miniPCIe (with an external 1SIM supporting 4G/5G), 1PCIE, 1MSATA, 1*2.5 HDD/SSD |
| OS | Windows, Linux |
| Power supply | Input: 2P compact Phoenix terminal, DC 9-36V, with reverse connection, overvoltage and overcurrent protection. Minimum input: 12V/5A |
| Screen type | 15.6”XGA TFT |
| Resolution | 1920*1280 |
| Cutout size | 382mm*240mm |
| Dimensions | 390mm*248mm*68mm |
| Overall weight | 5kg |
| Touch screen | Optional: 10-point capacitive or five-wire resistive touch |
| Construction | Aluminum profile shell |
| Mounting method | VESA/bracket installation, embedded installation |
| Operating temp. | -20~60°C (using solid-state drive with wide temperature range) |
| Rel. humidity | 5~95% (without condensation) |
| Vibration in operation | SSD:5~500Hz, 2Grms operation |
| Shock in operation | Operation:10G@11MS Non-operation:30G@11ms |
| EMC (ESD) | Contact 6KV,Air 8KV |
| Cert. | CCC CE ROHS |
What are the features of KTB brand industrial panel PCs?
01
15.6-inch HD Display with Dual Touch Options
Adopts 15.6-inch industrial XGA screen with 1920×1280 high definition. Two touch alternatives: 10-point capacitive touch and 5-wire resistive touch. Delivers outstanding visibility under strong ambient light and precise touch response, ideal for industrial console and monitoring display applications.
01
Abundant Industrial I/O Ports & 5G Wireless Support
Comes with dual Intel I210 Gigabit LAN, six RS232 serial ports (COM1~2 support RS422/485), four USB3.0 ports and HDMI. The externally accessible miniPCIe slot with SIM slot supports 4G/5G modules to realize wired & wireless industrial communication and multi-peripheral connection.
01
IP65 Protection, Wide Temperature & Anti-vibration Durability
Full-sealed fanless aluminum extrusion chassis with IP65 dustproof and waterproof front panel. Operating temperature ranges from -20℃ to 60℃ at 5%~95% non-condensing humidity; resistant to 5~500Hz vibration and 10G impact, supporting 7×24h continuous operation under harsh industrial conditions.
01

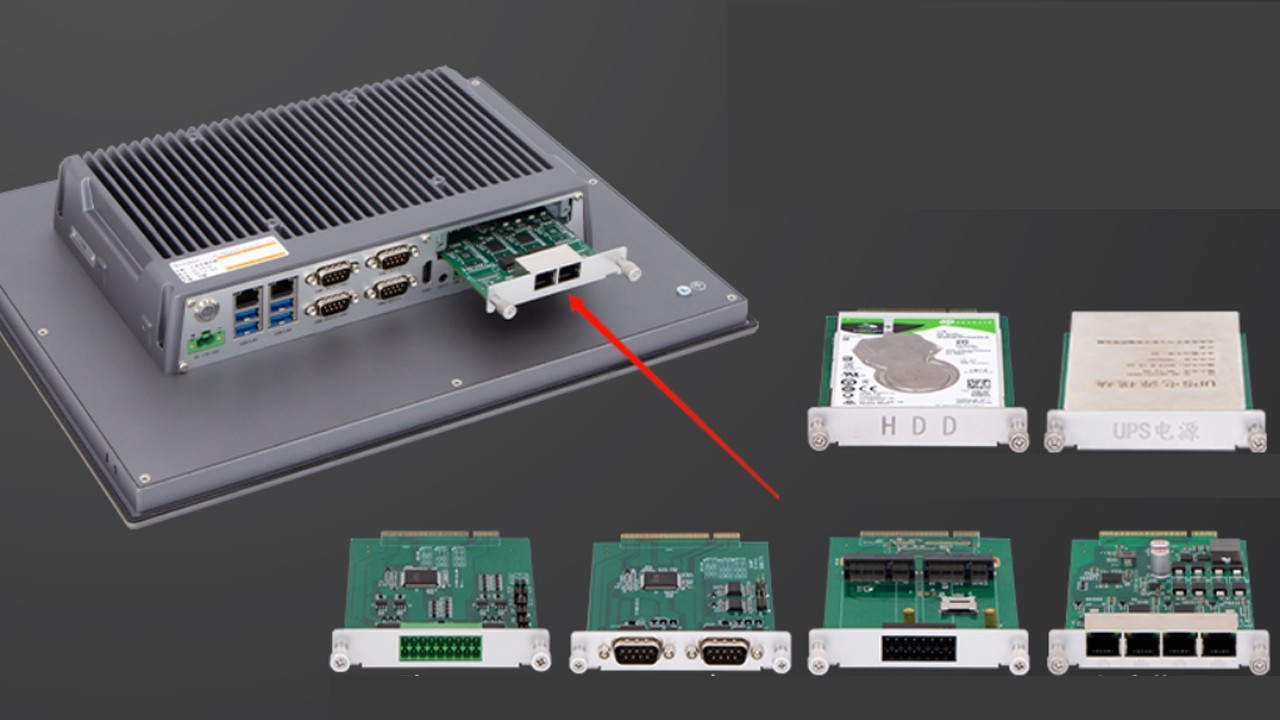

Multiple Expansion Slots for Flexible Upgrade
Preinstalled miniPCIe, mSATA and 2.5-inch HDD/SSD storage slots, compatible with 5G modules, CAN bus cards, GPIO modules and storage expansion. Customizable functions fit upgrade demands of automation, IoT and smart equipment projects.
01
+
Large HD Screen, Preferred for Industrial Visualization
15.6-inch 1920×1280 high-definition display paired with dual touch choices provides crisp visuals and responsive touch control, perfect for on-site operation, industrial monitoring and data visualization.
02
Full CPU Product Line with Wide Performance Range
Covers low-power Celeron to high-performance 10th Gen Core processors with max 32GB RAM, balancing procurement cost and computing performance for both lightweight and heavy-duty industrial tasks.
03
5G Wireless Connection Simplifies Remote Maintenance
MiniPCIe + SIM card slot supports 4G/5G high-speed wireless data transmission, facilitating unmanned equipment operation, remote monitoring and mobile industrial scenarios.
04
+
Wide Voltage & Multi-protection for Long-term Stable Performance
DC 9~36V wide-range power input with reverse connection, overvoltage and overcurrent protection. Fanless low-power design plus dust & moisture resistance effectively cuts down breakdown rate and after-sales maintenance costs.
Application Cases
The following are real application cases of KTB in various industries.
Large-scale infrastructure construction
Industrial PC provide stable computing power for super projects such as bridge construction, tunnel construction, and large-scale airport construction. They accurately collect construction data in complex environments and intelligently control equipment.
Industry and Energy
Covering all scenarios of factory production lines and energy stations, industrial PC ensure production continuity with high reliability. They perform real-time monitoring and intelligent scheduling, helping to enhance industrial manufacturing efficiency and making energy development, transmission and distribution safer and more controllable.
Transportation Sector
Deeply integrated into the road, railway and rail transit systems, the industrial PC support the operation of the intelligent control system, precisely scheduling traffic flow and ensuring stable signal transmission.
Smart Factory
As the "nerve center" of the intelligent factory, the industrial PC connects the production line equipment with the management system, collects and analyzes data in real time, optimizes the production process, and promotes the intelligent upgrade of the manufacturing model.
